AlgoSec 2000 Series Appliances
Designed to provide a smooth turnkey deployment of the AlgoSec Security Management Suite


AlgoSec 2000 SeriesAppliances

AlgoSec Products
AlgoSec 2000 Series Appliances
AlgoSec 2062 Appliance
Contact us for pricing!
AlgoSec 2162 Appliance
Contact us for pricing!
AlgoSec 2322 Appliance
Contact us for pricing!

Click here to jump to more pricing!

Overview:

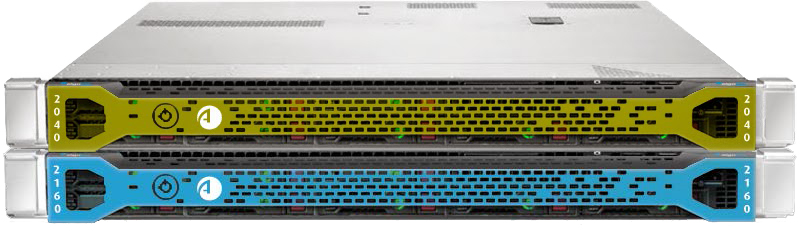

The AlgoSec 2000 Series appliances are designed to provide a smooth turnkey deployment of the AlgoSec Security Management Solution. Based on a hardened and optimized operating system, AlgoSec appliances deliver flexibility, scalability and extensibility to organizations of all sizes.

Secure

  • Hardened operating system optimized for the AlgoSec Security Management Solution

Easy To Deploy

  • Easy integration with your network
  • Preloaded with the entire AlgoSec Security Management Solution

Enterprise Grade

  • Redundant components for maximum uptime
  • High-availability using two appliances in active-standby mode
  • Load-sharing between multiple appliances for increased scalability and fast report generation
  • Geographically distributed architecture for improved network efficiency

Specifications:

Model 2062 2162 2322
Specifications
Number of Supported Devices* 1 – 60 60 – 550 550 – 1,200
CPU 6 cores: Intel Xeon E5-2603 v3 16 cores: Intel Xeon E5-2600 v3 32 cores: Intel Xeon E5-2600 v3
Ram 16GB 64GB 128GB
LAN Port 2x 10/100/1000 Ethernet 4x 10/100/1000 Ethernet 4x 10/100/1000 Ethernet
Video Connection VGA VGA VGA
USB 1 x USB 2.0 Ports
3 x USB 3.0 Ports
5 x USB 3.0 Ports 5 x USB 3.0 Ports
Power Supply HP 550W FIO HP 500W FS – Redundant HP 800W FS – Redundant
Storage 2x 900GB 5x 900GB 8x 1200GB
iLO (Integrated lights out) HP iLO Standard HP iLO Standard HP iLO Standard
Redundancy SW RAID HW RAID 5, Dual CPU
Built-in fail-safe in case of a hard-drive failure
HW RAID 5, Dual CPU
Built-in fail-safe in case of a hard-drive failure
Operating Temperature 10° to 35°C (50° to 95°F) 10°C to 35°C (50°F to 95°F) 10°C to 35°C (50°F to 95°F)
Operating Humidity 5% to 95% 8% to 90% 8% to 90%
Physical Specifications
Form Factor 1U Rack form factor 1U Rack form factor 1U Rack form factor
Dimensions H: 1.68" (4.32 cm)
W: 17.11" (43.46 cm)
L: 23.92" (60.76 cm)
H: 1.68" (4.32 cm)
W: 17.11" (43.46 cm)
L: 23.92" (60.76 cm)
H: 1.68" (4.32 cm)
W: 17.11" (43.46 cm)
L: 23.92" (60.76 cm)
Weight (maximum) 8 SFF 37.44 Ib. (17kg) 8 SFF 33.3 lb. (15.31 kg) 8 SFF 33.3 lb. (15.31 kg)
Chassis HP Rack Mount Consoles HP Rack Mount Consoles HP Rack Mount Consoles
Compliance
USA/Canada
  • FCC Part 15, Class A
  • NFPA 70, 1999 Edition (National Electric Code), Article 250
  • Canada CSA C22.1
EMEA and International
  • International Electrotechnical Commission (IEC) Code 364, 1-7
  • EMC: CISPR 22; EN55022; EN55024; FCC CFR 47, Pt 15; ICES-003; CNS13438; GB9254; K22; K24; EN 61000-3-2; EN 61000-3-3; EN 60950-1; IEC 60950-1

Documentation:

Download the AlgoSec 2000 Series Appliances Datasheet (.PDF)
